Integriti 995201
POSMarket SKU: Z16081
This model is available in 4 different configurations. Select a configuration below or contact our experts on 1300 737 998.

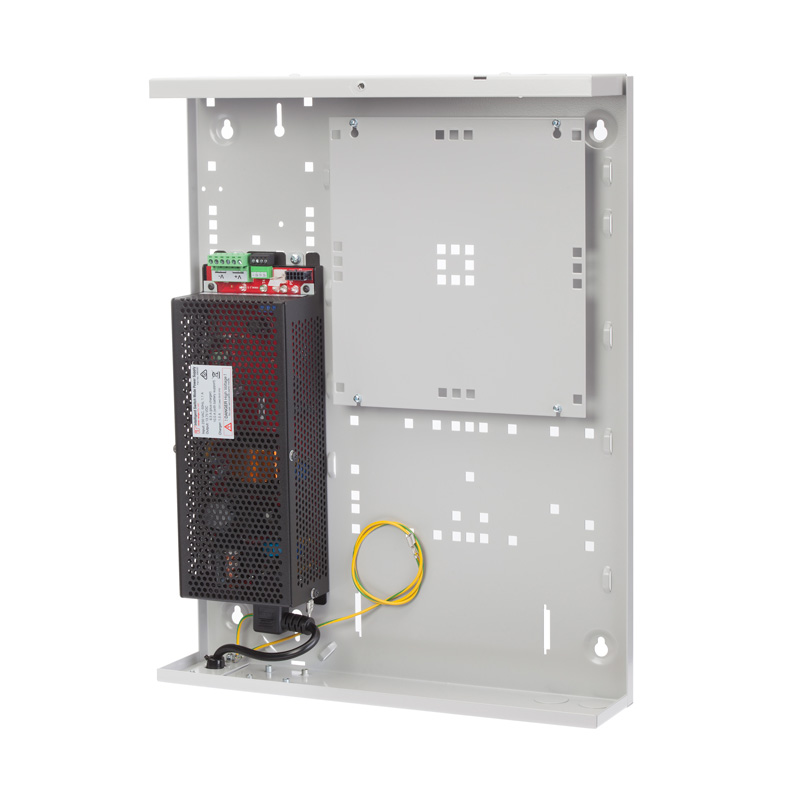

Medium Enclosure with power supply
Product Overview

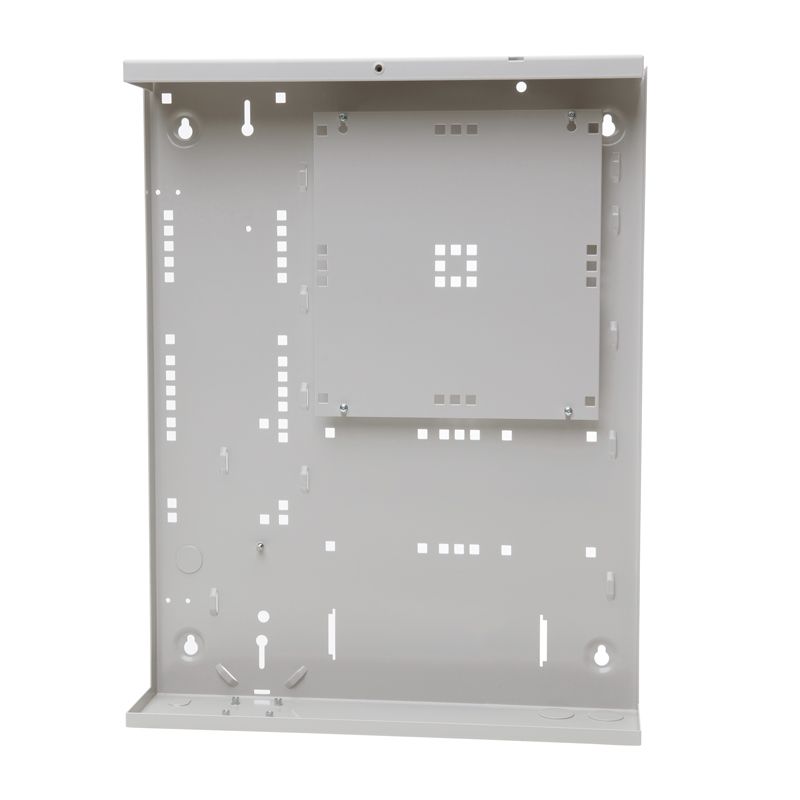

The Integriti Medium Enclosure (M) is a universal sturdy metal enclosure designed for general purpose installation of Integriti, Inception or Concept Controllers, UniBus Devices and LAN Modules.
The flexible design allows for a range of equipment to be fitted in various custom configurations to meet many installation requirement.
A range of powered or non-powered versions are available to suit Integriti, Inception and Concept Controllers and modules. The Medium Enclosure's low profile side elevation protrudes less than 90mm from the mounting surface.
Features
- Robust metal enclosure
- Designed for universal installation requirements
- Version to suit Integriti Controllers and Modules
- Version to suit Inception Controllers and Modules
- Version to suit Concept Controllers and Modules
- Mounting options for 17Ah or 9Ah Lead Acid Batteries
- Low Profile design Size 460(L) x 358(W) x 85(D)
- Suitable for Integriti/Inception or Concept medium size equipment mounting plates
- Powered Low Profile Enclosures are designed to house the transformer, 3A Power Supply, 7.0Ah or 18Ah Battery and one or more Integriti PCBs, depending on their size / type
Product Specifications
| Medium Enclosure | |
| Part number | 995201PEI; 995201PE8; 995201 |
| Physical | |
| Enclosure Size | 460(L) x 358(W) x 85(D) |
| Cable Entry Points | |
| Top | 3 x 25mm Round Conduit Punch-outs 1 x 25x50mm Punch-out 1 x 50x50mm Punch-out 1 x Power entry |
| Base | 2 x 25mm Round Conduit Punch-outs 1 x Power Entry 1 x DB9 Chassis Mount Point |
| Back | Through wall cable entry behind main plate |
| Powered Versions | 2/3/8Amp See the Integriti 2/3/8Amp PSU Datasheets for PSU Specifications |
Product Videos
Please contact our team using the Ask an Expert form or call us on 1300 737 998.
Contact our Team
