Axis M1135-E
$1,050.50 (incl. GST)
POSMarket SKU: Z14837
01772-001: M1135-E Network Camera, 1080p, Zipstream, WDR, PoE, IP66, IK10, 3-10.5mm Lens
Axis M11-E Series, Outdoor-ready 2 MP premium affordable surveillance.
Product Overview

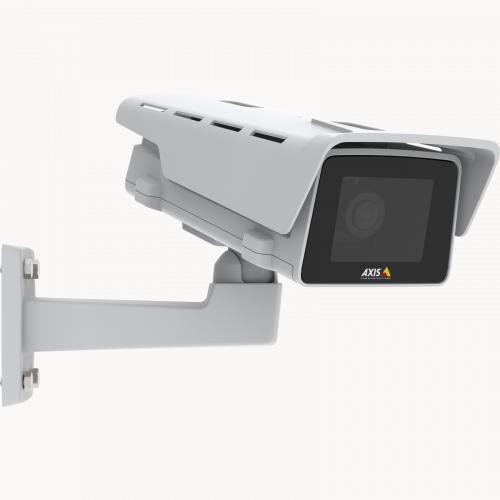

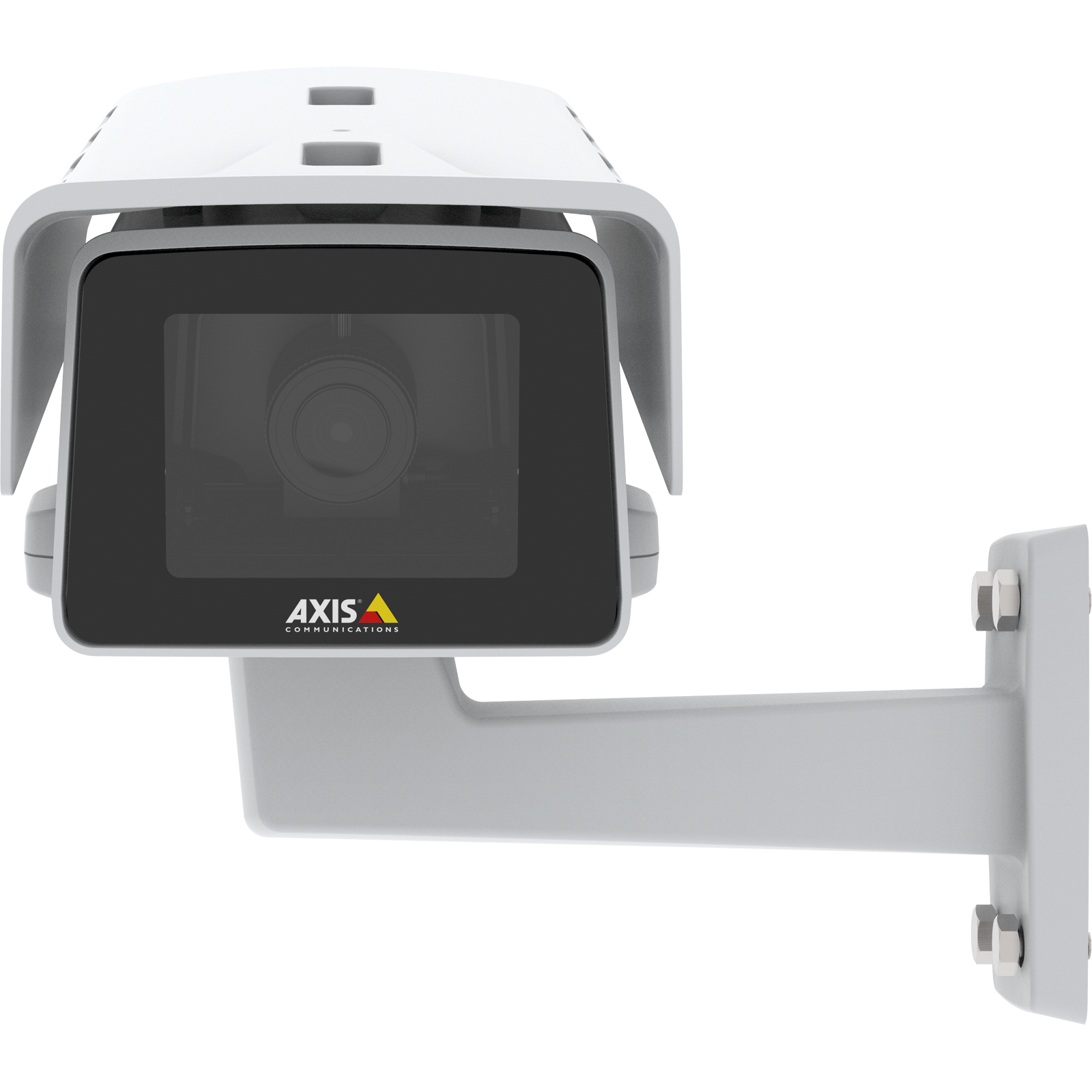

The Axis M1135-E/ AXIS-01772-001 is a compact, outdoor-ready network camera that delivers excellent image quality in 2 MP resolution. Designed as a visible deterrent, it helps discourage trespassing and criminal behaviour. It offers flexible, installation making it ideal for various industrial or commercial surveillance situations. This camera supports PoE and
redundant DC power, so your data is safeguarded in the event of a power outage. Featuring Axis Lightfinder and Axis
Forensic WDR it delivers true colors and great details in challenging light or near darkness. It includes a CS-mount
allowing you to easily change lens to meet your specific requirements. Plus, audio input lets you record video with
sound. Furthermore, Axis Zipstream with H.264/H.265 significantly lowers bandwidth and storage requirements and
enhanced security features ensures the integrity and authenticity of the firmware.
This box camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP66-, NEMA 4X-, and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism.
FEATURES
redundant DC power, so your data is safeguarded in the event of a power outage. Featuring Axis Lightfinder and Axis
Forensic WDR it delivers true colors and great details in challenging light or near darkness. It includes a CS-mount
allowing you to easily change lens to meet your specific requirements. Plus, audio input lets you record video with
sound. Furthermore, Axis Zipstream with H.264/H.265 significantly lowers bandwidth and storage requirements and
enhanced security features ensures the integrity and authenticity of the firmware.
This box camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP66-, NEMA 4X-, and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism.
FEATURES
- WDR Forensic Capture
- Zipstream technology
- Lightfinder
- Exchangable CS mount lens
- Audio input
- IP66
Product Specifications
| Camera | |
| Sensor | 2 MP 1/3" CMOS |
| Lens Mount | CS |
| Focal Length | 3 to 10.5mm |
| Maximum Aperture | f/1.4 |
| Zoom | Optical: 3.5x |
| Lens Field of View | Horizontal: 90 to 33° Vertical: 49 to 19° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.1 Lux B&W: 0.02 Lux |
| Shutter Speed | 1/33,500 to 2 Seconds |
| Video | |
| Streaming Resolution | 1920 x 1080 at 30 fps |
| Supported Video Compression | H.264, H.265, MJPEG |
| Multi-View Streaming | Yes |
| Automatic Gain Control | Yes |
| Audio | |
| 1- or 2-Way Audio | One-Way |
| Audio Formats | AAC-LC, G.711, G.726, LPCM, Opus |
| Built-In Mic | No |
| External Audio Input | 3.5 mm |
| Networking | |
| Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection, User Access Log |
| Supported Protocols | ARP, Bonjour, CIFS/SMB, DHCP, DNS, DynDNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, LLDP, NTP, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SFTP, SMTP, SNMP v1/v2c/v3 (MIB-II), SOCKS, SRTP, SSH, SSL/TLS, TCP, UDP, UPnP, USGv6 |
| System Integration | |
| Application Programming Interface (API) | Open API for Software Integration, Including VAPIX and AXIS Camera Application Platform AXIS Guardian with One-Click Connection ONVIF Profiles G, S, and T |
| Analytics | Included AXIS Video Motion Detection, Active Tampering Alarm Supported AXIS Camera Application Platform Enabling Installation of Third-Party Applications |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Built-In Installation Aids | Pixel Counter |
| Environmental | |
| Operating Temperature | -13 to 122°F / -25 to 50°C |
| Startup Temperature | -4°F / -20°C |
| Storage Temperature | -40 to 149°F / -40 to 65°C |
| Operating Humidity | 10 to 100% |
| IP Rating | IP66 |
| IK Rating | IK10 |
| General | |
| Memory | 512 MB RAM / 512 MB Flash |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [512 GB Maximum] |
| Pan/Tilt | None |
| Alarm I/O | None |
| I/O Connections | 1 x RJ45 1 x Power 1 x 4-Pin Terminal Block 1 x 2-Pin Terminal Block |
| Video Management Software | AXIS Companion AXIS Camera Station Video Management Software from Axis Application Development Partners |
| Internal Storage | None |
| External Storage Options | NAS |
| Power Source | DC, PoE 802.3af (15 W), PoE 802.3at (30 W) |
| Power Consumption | PoE: 4.1 W DC: 3.8 W |
| Material of Construction | Polymer |
| Dimensions | H: 5.6 x W: 9.4 x L: 14.6" / H: 143.0 x W: 240.0 x L: 372.0 mm |
| Weight | 3.97 lb / 1.8 kg |
