Axis M3016
POSMarket SKU: Z14928
01152-001: M3016 3MP Mini Dome Camera, H.264/5, Zipstream, 2.8mm Fixed Lens

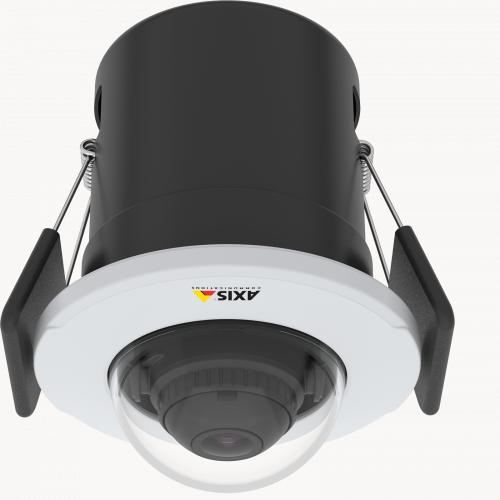

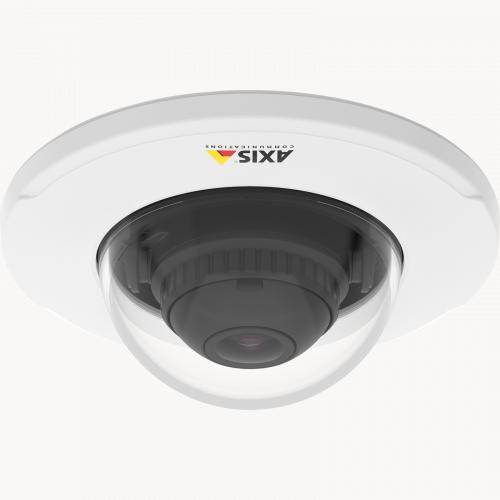

Axis' Ultra-discreet, recessed-mount 3 MP fixed mini dome network camera
Product Overview
FEATURES
- Ultra-discreet design
- 3 MP video in full frame rate
- Axis Zipstream technology
- Axis Corridor format

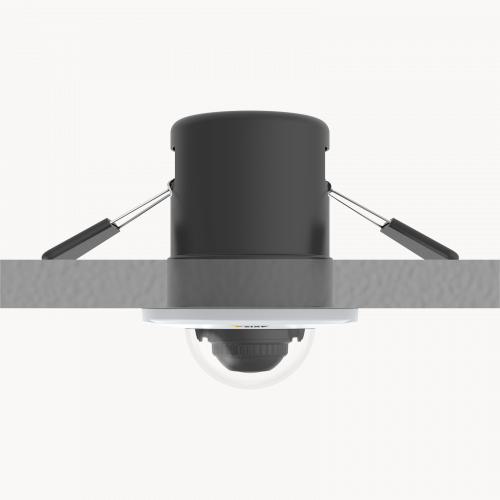

- Easy recessed installation
Product Specifications
| Camera | |
| Sensor | 3 MP 1/3" CMOS |
| Focal Length | 1.8mm |
| Maximum Aperture | f/2.4 |
| Lens Field of View | Horizontal: 132° Vertical: 96° |
| Minimum Illumination | 0.35 Lux |
| Shutter Speed | 1/32,500 to 1/5 Seconds |
| Camera Angle Adjustment | Horizontal: -105 to 105° Vertical: -85 to 85° |
| Video | |
| Streaming Resolution | 2016 x 1512 at 30 fps |
| Supported Video Compression | H.264, H.265, MJPEG |
| Multi-View Streaming | Yes, 2 Streams |
| Built-In Mic | No |
| Networking | |
| Security | Centralized Certificate Management, Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection, User Access Log |
| Supported Protocols | ARP, Bonjour, CIFS/SMB, DHCP, DNS, DiffServ, DynDNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, LLDP, NTP, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SFTP, SMTP, SNMP v1/v2c/v3 (MIB-II), SOCKS, SSH, SSL/TLS, TCP, UDP, UPnP |
| System Integration | |
| Application Programming Interface (API) | VAPIX and AXIS Camera Application Platform AXIS Video Hosting System |
| Analytics | Included AXIS Video Motion Detection Active Tampering Alarm Supported AXIS Digital Autotracking AXIS Fence Guard AXIS Motion Guard AXIS Loitering Guard AXIS People Counter, AXIS Queue Monitor, AXIS Occupancy Estimator, AXIS Direction Detector, AXIS Tailgating Detector, AXIS Random Selector AXIS Camera Application Platform for Third-Party Applications |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Built-In Installation Aids | Pixel counter |
| Environmental | |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -40 to 149°F / -40 to 65°C |
| Operating Humidity | 15 to 85% |
| General | |
| Memory | 512 MB RAM / 512 MB Flash |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [512 GB Maximum] |
| Pan/Tilt | None |
| I/O Connections | 1 x RJ45 |
| Video Management Software | AXIS Companion and AXIS Camera Station |
| Internal Storage | None |
| External Storage Options | NAS |
| Power Source | PoE 802.3af (15 W), PoE 802.3at (30 W) |
| Power Consumption | PoE: 2.9 W |
| Material of Construction | Aluminum, Plastic |
| Dimensions | ø: 3.5 x H: 4.5" / ø: 88.9 x H: 114.3 mm |
| Weight | 12.35 oz / 350 g |
