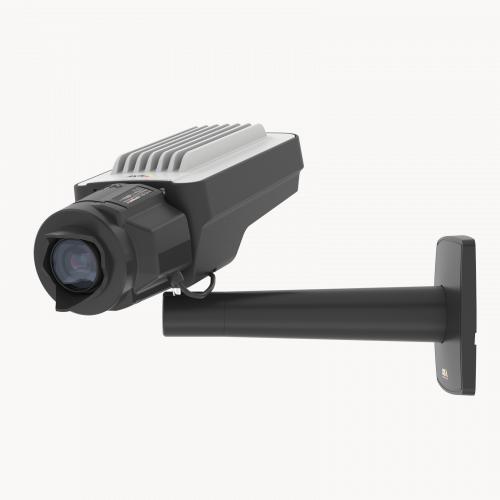

Axis Q1645
POSMarket SKU: Z14930
This product has been discontinued by the manufacturer. Please contact our team on 1300 737 998 for advice on a suitable replacement or we may be able to source refurbished units.
Axis' network camera with High-speed video with 1/2 sensor and i-CS lens
Product Overview
FEATURES
- HDTV 1080p at 100/120 fps
- Unparalleled light sensitivity with 1/2" sensor
- Electronic image stabilisation (EIS)
- Forensic WDR, Lightfinder and Zipstream
- Built-in analytics
Product Specifications
| Camera | |
| Sensor | 2 MP 1/2" CMOS |
| Lens Mount | CS |
| Focal Length | 3.9 to 10mm |
| Maximum Aperture | f/1.5 |
| Zoom | Optical: 2.6x |
| Lens Field of View | Horizontal: 109 to 42° Vertical: 58 to 23° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.2 Lux B&W: 0.04 Lux |
| Shutter Speed | 1/100,000 to 2 Seconds |
| Video | |
| Streaming Resolution | 1920 x 1080 at 120 fps |
| Supported Video Compression | H.264, MJPEG |
| Multi-View Streaming | Yes |
| Audio | |
| 1- or 2-Way Audio | Two-Way |
| Audio Formats | AAC, G.711, G.726, Opus, PCM |
| Built-In Mic | No |
| External Audio Input | 3.5 mm |
| External Audio Output | 3.5 mm |
| Networking | |
| Security | Centralized Certificate Management, Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection, User Access Log |
| Supported Protocols | ARP, Bonjour, CIFS/SMB, DHCP, DNS, DynDNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, LLDP, NTP, ONVIF Profile G, ONVIF Profile S, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SFTP, SMTP, SNMP v1/v2c/v3 (MIB-II), SOCKS, SRTP, SSH, SSL/TLS, TCP, UDP, UPnP |
| System Integration | |
| Application Programming Interface (API) | VAPIX and AXIS Camera Application Platform AXIS Video Hosting System |
| Analytics | Included: AXIS Video Motion Detection AXIS Fence Guard AXIS Motion Guard AXIS Loitering Guard Active Tampering Alarm Audio Detection Supported: AXIS Digital Autotracking AXIS Perimeter Defender AXIS Camera Application Platform for Third-Party Applications |
| Event Trigger | Yes |
| Event Action | Recording, Notification |
| Data Streaming | Yes |
| Built-In Installation Aids | i-CS Lens: Remote Zoom and Focus Other Lens: Remote Back Focus Traffic Wizard Pixel Counter Levelling Assistant Autorotation |
| Environmental | |
| Operating Temperature | -4 to 140°F / -20 to 60°C |
| Storage Temperature | -40 to 149°F / -40 to 65°C |
| Operating Humidity | 10 to 85% |
| General | |
| Memory | 1 GB RAM / 512 MB Flash |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [512 GB Maximum] |
| Pan/Tilt | None |
| I/O Connections | 1 x RJ45 1 x 6-Pin Terminal Block 1 x 9-Pin Serial (RS-485) 1 x i-CS |
| Video Management Software | AXIS Companion AXIS Camera Station VMS from Axis' Application Development Partners |
| Internal Storage | None |
| External Storage Options | NAS |
| Power Source | DC, PoE 802.3af (15 W), PoE 802.3at (30 W) |
| Power Consumption | PoE: 4.5 W DC: 4.3 W |
| Material of Construction | Zinc |
| Dimensions | H: 3.2 x W: 2.6 x L: 8.3" / H: 82.0 x W: 66.0 x L: 210.0 mm |
| Weight | 2.09 lb / 950 g |
