Axis Q9216-SLV
from $2,325.13 (incl. GST)
POSMarket SKU: Z14847
This model is available in 2 different configurations. Select a configuration below or contact our experts on 1300 737 998.
Axis Impact-resistant anti-ligature Network camera
Product Overview

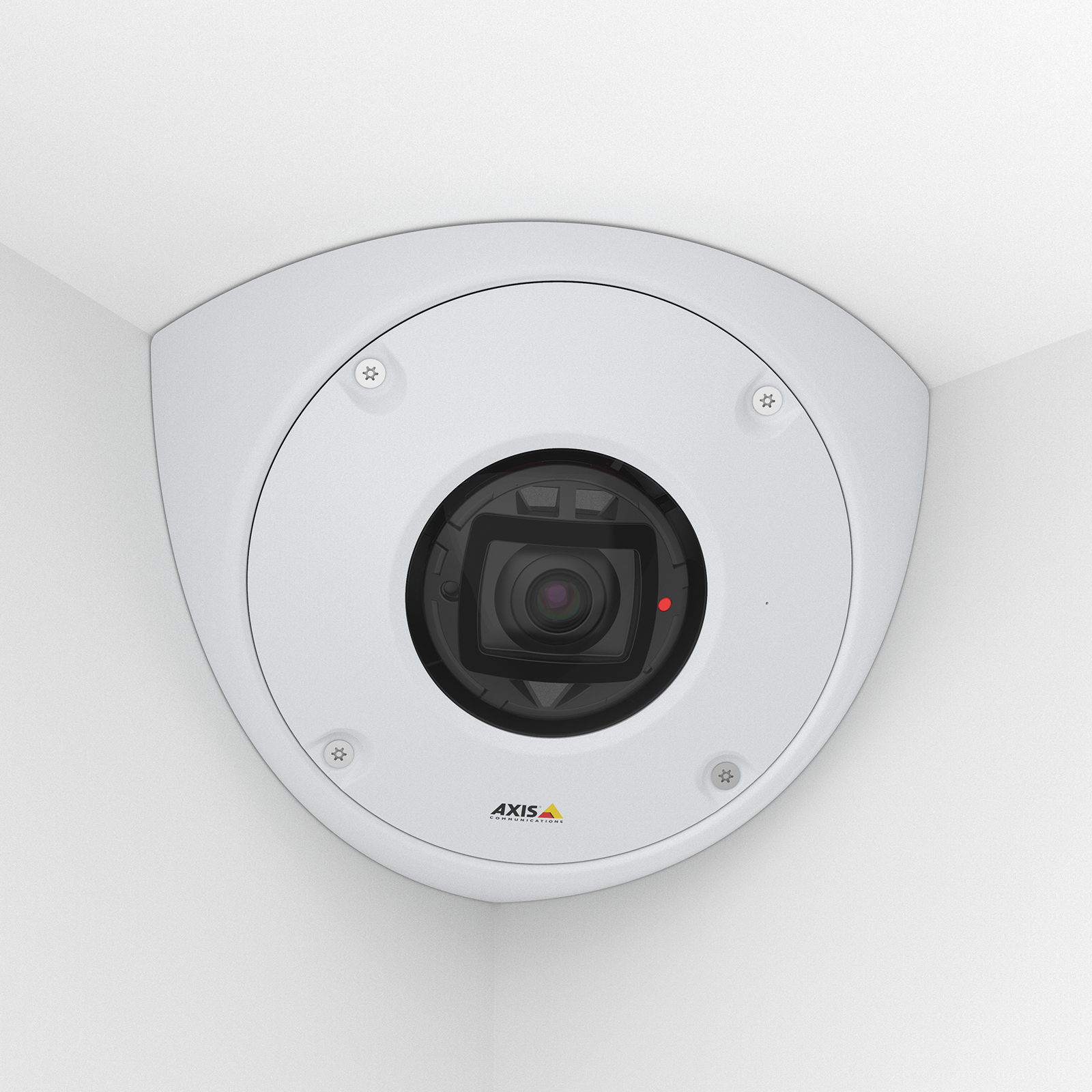

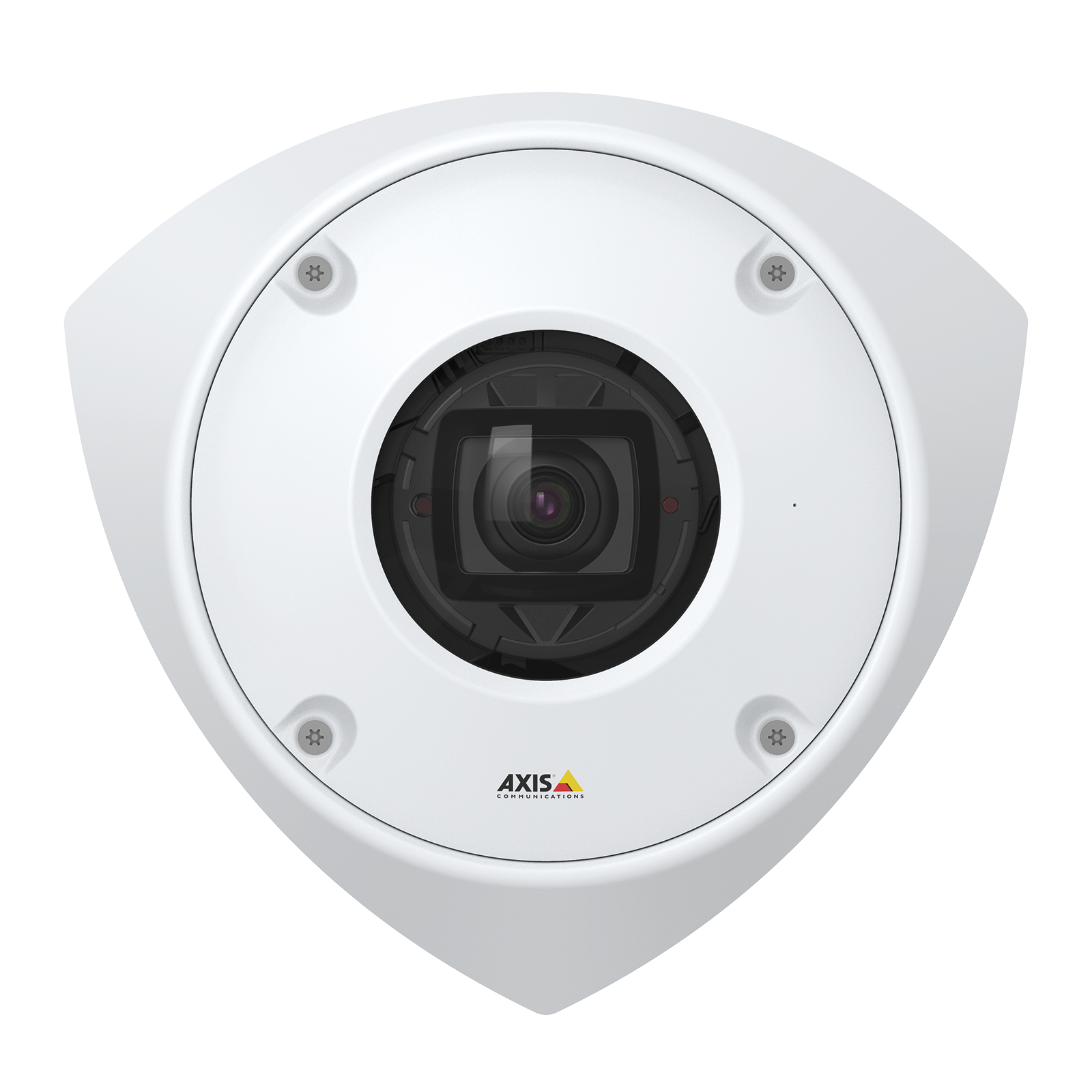

The Axis Q9216-SLV / AXIS-01767-001 is a compact and robust ligature-resistant (anti-ligature) corner-mount camera specially designed to provide a wide field-of-view and ensure no area is left uncovered. This low power consuming camera is ideal for high-security installations such as in prisons and psychiatric wards.
The Q9216-SLV is a compact and robust ligature-resistant (anti-ligature) corner-mount camera that delivers 4 MP
video quality. It covers 125 degrees horizontally and 95 degrees vertically, with no blind spots. Featuring invisible
IR illumination, it’s ideal for covert video surveillance in complete darkness. With an IK10+/IP66 rated casing, it also
includes a removable built-in microphone and an indication LED. The camera has polygonal privacy masking, which
allows for flexible coverage and helps ensure occupant privacy is respected. Furthermore, signed firmware and a Trusted
Platform Module (TPM, FIPS 140-2 level 2 certified) help prevent unauthorized access and safeguard your system.
This corner-mount camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP6K9K-, NEMA 4X-, and IK10-rated enclosure for outdoor use in areas at risk of vandalism.
FEATURES
The Q9216-SLV is a compact and robust ligature-resistant (anti-ligature) corner-mount camera that delivers 4 MP
video quality. It covers 125 degrees horizontally and 95 degrees vertically, with no blind spots. Featuring invisible
IR illumination, it’s ideal for covert video surveillance in complete darkness. With an IK10+/IP66 rated casing, it also
includes a removable built-in microphone and an indication LED. The camera has polygonal privacy masking, which
allows for flexible coverage and helps ensure occupant privacy is respected. Furthermore, signed firmware and a Trusted
Platform Module (TPM, FIPS 140-2 level 2 certified) help prevent unauthorized access and safeguard your system.
This corner-mount camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP6K9K-, NEMA 4X-, and IK10-rated enclosure for outdoor use in areas at risk of vandalism.
FEATURES
- Anti-ligature, robust (IK10+)
- Corner camera - no blind spots
- WDR and invisible IR (940 nm)
- Compact design - easy to install
- Zipstream supporting H.264 and H.265
Product Specifications
| Camera | |
| Sensor | 4 MP 1/2.5" CMOS |
| Lens Mount | M12 |
| Focal Length | 2.4mm |
| Maximum Aperture | f/2 |
| Lens Field of View | Horizontal: 125° Vertical: 95° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.23 Lux B&W: 0 Lux |
| Shutter Speed | 1/32,500 to 1/5 Seconds |
| Video | |
| Streaming Resolution | 2304 x 1728 at 30 fps |
| Supported Video Compression | H.264, H.265, MJPEG |
| Multi-View Streaming | Yes, 2 Streams |
| Audio | |
| 1- or 2-Way Audio | Two-Way |
| Audio Formats | AAC-LC, G.711, G.726, LPCM, Opus |
| Built-In Mic | Yes |
| External Audio Input | 3.5 mm |
| External Audio Output | 3.5 mm |
| Networking | |
| Security | Centralized Certificate Management, Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection, User Access Log |
| Supported Protocols | ARP, Bonjour, CIFS/SMB, DHCP, DNS, DynDNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, LLDP, MQTT, NTP, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SFTP, SIP (SIPS), SMTP, SNMP v1/v2c/v3 (MIB-II), SOCKS, SRTP, SSH, SSL/TLS, TCP, UDP, UPnP, USGv6, syslog |
| System Integration | |
| Application Programming Interface (API) | Open API for Software Integration, Including VAPIX and AXIS Camera Application Platform AXIS Video Hosting System with One-Click Connection ONVIF Profiles G, S & T |
| Analytics | Included: AXIS Video Motion Detection, Active Tampering Alarm Supported: AXIS Digital Autotracking, AXIS Guard Suite (AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard), AXIS Camera Application Platform Enabling Installation of Third-Party Applications |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Built-In Installation Aids | Pixel Counter, Adjustable IR Illumination Intensity |
| Environmental | |
| Operating Temperature | -4 to 122°F / -20 to 50°C |
| Startup Temperature | -4 to 131°F / -20 to 55°C |
| Storage Temperature | -40 to 149°F / -40 to 65°C |
| Operating Humidity | 10 to 85% |
| IP Rating | IP69K |
| IK Rating | IK10 |
| Memory | 1024 MB RAM / 512 MB Flash |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC |
| Pan/Tilt | None |
| I/O Connections | 1 x RJ45 1 x Micro-HDMI 1 x 4-Pin Terminal Block |
| IR Illuminators | 940 nm |
| IR Range | 49.2' / 15 m |
| Video Management Software | AXIS Companion AXIS Camera Station Video Management Software from Axis Application Development Partners |
| Internal Storage | None |
| Power Source | PoE 802.3at (30 W) |
| Power Consumption | 4.7 W |
| Material of Construction | Polymer, Stainless Steel |
| Dimensions | H: 5.2 x W: 8.2 x L: 6.9" / H: 131.0 x W: 209.0 x L: 176.0 mm |
| Weight | 3.5 lb / 1.6 kg |
