Hanwha PNV-9080R
$1,532.30 (incl. GST)
POSMarket SKU: Z14581

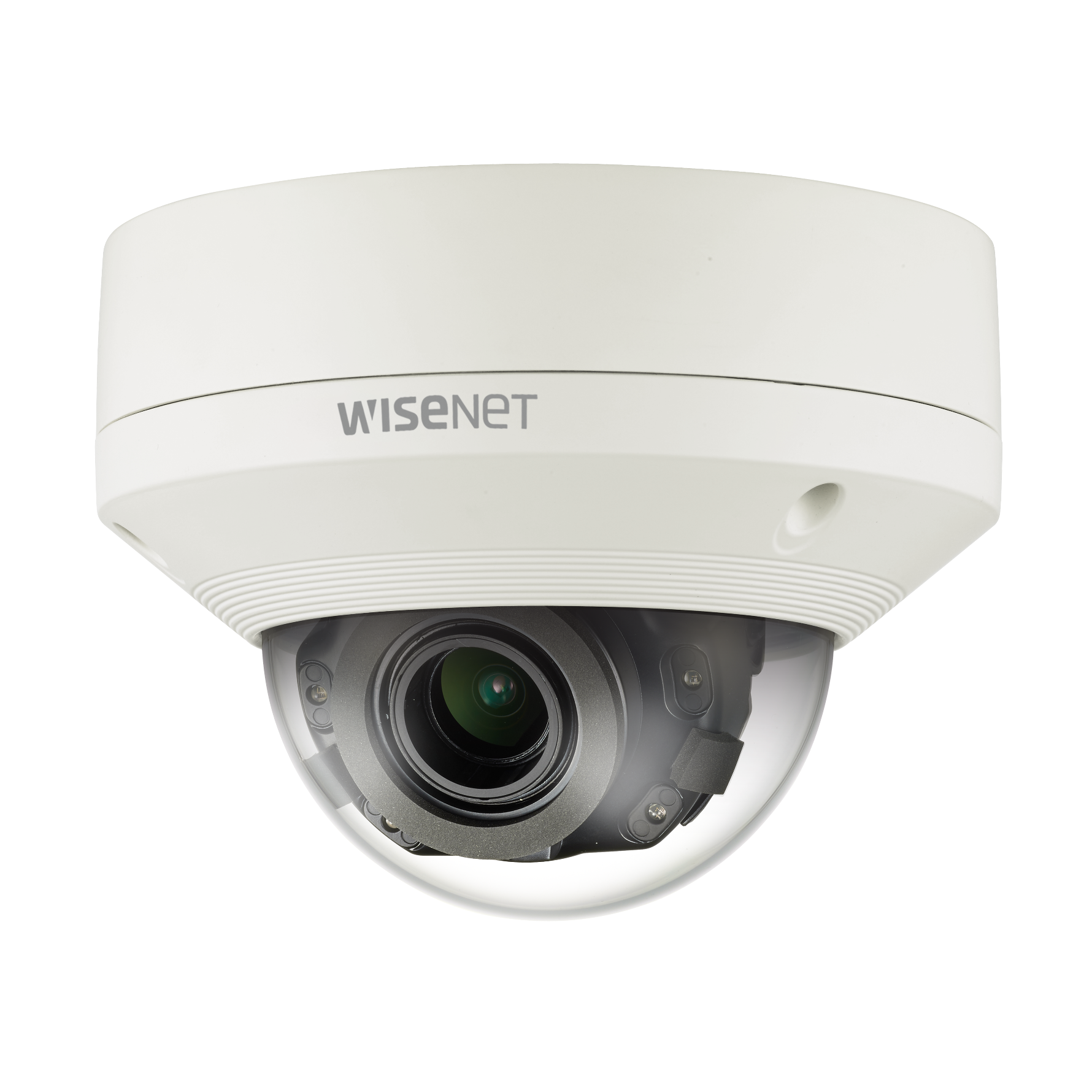

PNV-9080R: Hanwha Wisenet 4K Outdoor Dome Camera, H.265, 30fps, 120dB WDR, 30m IR, 4.5-10mm
Hanwha Wisenet 4K Outdoor Dome Camera, H.265, 30fps
Product Overview
The Hanwha PNV-9080R or HAN-PNV-9080R from the Wisenet P series provides a high tech surveillance system by producing superior image quality and detailed visual output through 4K ultra HD. This camera supports defocus detection, which helps keep the focus on point and improves efficiency. The user can also adjust the optimal focus remotely via the network, which reduces the installation and optimisation time of the camera. WiseStream can reduce bandwidth by 50% and when combined with H.265, the bandwidth efficiency can be improved by up to 75% compared to current H.264 technology. The true WDR function built into this camera provides enhanced picture quality, by reducing motion blur and producing clearer images. The P-Iris enables the lens to open automatically and precisely, allowing for optimal performance in all lighting conditions, making the HAN-PNV-9080R an ideal solution for a range of security scenarios.
FEATURES
FEATURES
- Max. 12MP (4000 x 3000) resolution
- Max. 20fps at 12M, max.30fps at 8MP
- 0.3Lux at F1.6 (Colour), 0Lux (B/W: IR LED on)
- 4.5 to 10mm (2.2x) motorised varifocal lens
- IR viewable length 40m
- H.265, H.264, MJPEG support
- Day & night (ICR), WDR (120dB), simple focus, P-Iris
- Motion detection, defocus detection, tampering
- SD/SDHC/SDXC memory slot (max, 128GB), NAS, local PC support
- Hallway view (rotate 90 degrees / 270 degrees)
- WiseStream support, digital auto tracking
- Bi-directional audio support
Product Specifications
| Video | |
| Imaging Device | 1/1.7" 12.4MP CMOS |
| Resolution | [8M mode] 4096x2160, 3840x2160, 2592x1944, 2592x1464, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 [12M mode] 4000x3000, 3840x2160, 2592x1944, 2592x1464, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate H.265/H.264: | Max. 20fps@4000x3000, Max. 30fps@4096x2160 |
| MJPEG: | 2fps@4000x3000 ~ 2592x1464, 15fps@1920x1080 ~ 320x240 |
| Min. Illumination | Color: 0.3Lux(F1.6, 1/30sec), 0.01Lux(F1.6, 2sec) B/W: 0Lux(IR LED On) |
| Video Out | CVBS: 1.0 Vp-p / 75Ωcomposite, 720x480(N), 720x576(P) for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 4.5~10mm(2.2x) motorized varifocal |
| Max. Aperture Ratio | F1.6 |
| Angular Field of View | [4096x2160] H: 100.3°(Wide)~45.6°(Tele) / V: 49.7°(Wide)~24.0°(Tele) <br> [3840x2160] H: 92.3°(Wide)~42.6°(Tele) / V: 49.7°(Wide)~24.0°(Tele) |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Simple focus, Manual |
| Lens Type | P iris |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0°~354° / 0°~67° / 0°~355° |
| Operational | |
| Camera Title | Displayed up to 60 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction S | SNR |
| Defog | Support(built-in optical filter) |
| Motion Detection | 8ea, polygonal zones |
| Privacy Masking | 16ea, rectangular zones - Color: Grey/Green/Red/Blue/Black/White |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Analytics | Defocus detection, Fog detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Tampering, Virtual line, Audio detection |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output |
| Audio In | Selectable(mic in/line in) |
| Supply voltage: | 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Max.output level: 1Vrms |
| IR Viewable Length | 40m(131.23ft) |
