Hanwha XNO-8080R
$1,039.50 (incl. GST)
POSMarket SKU: Z14566

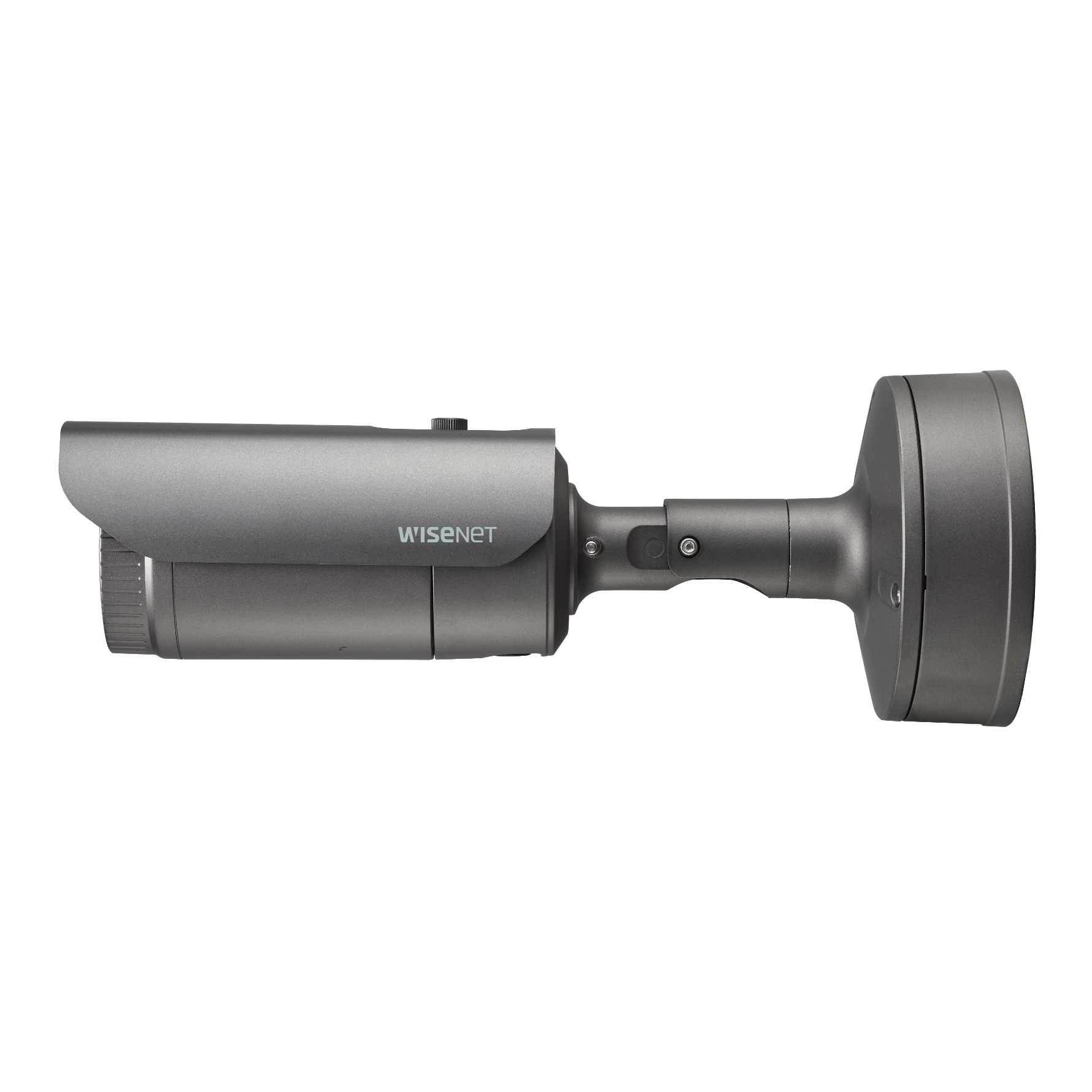

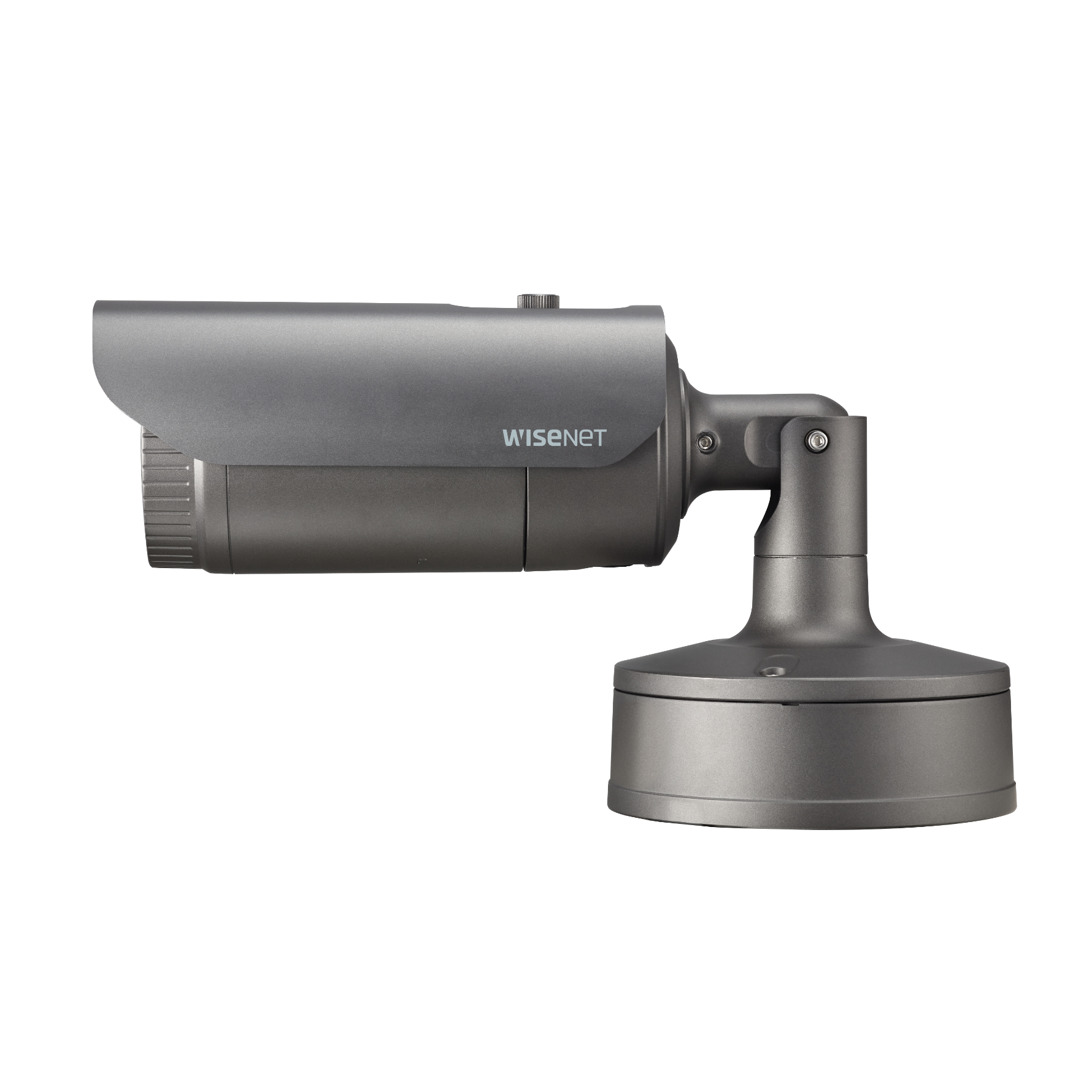

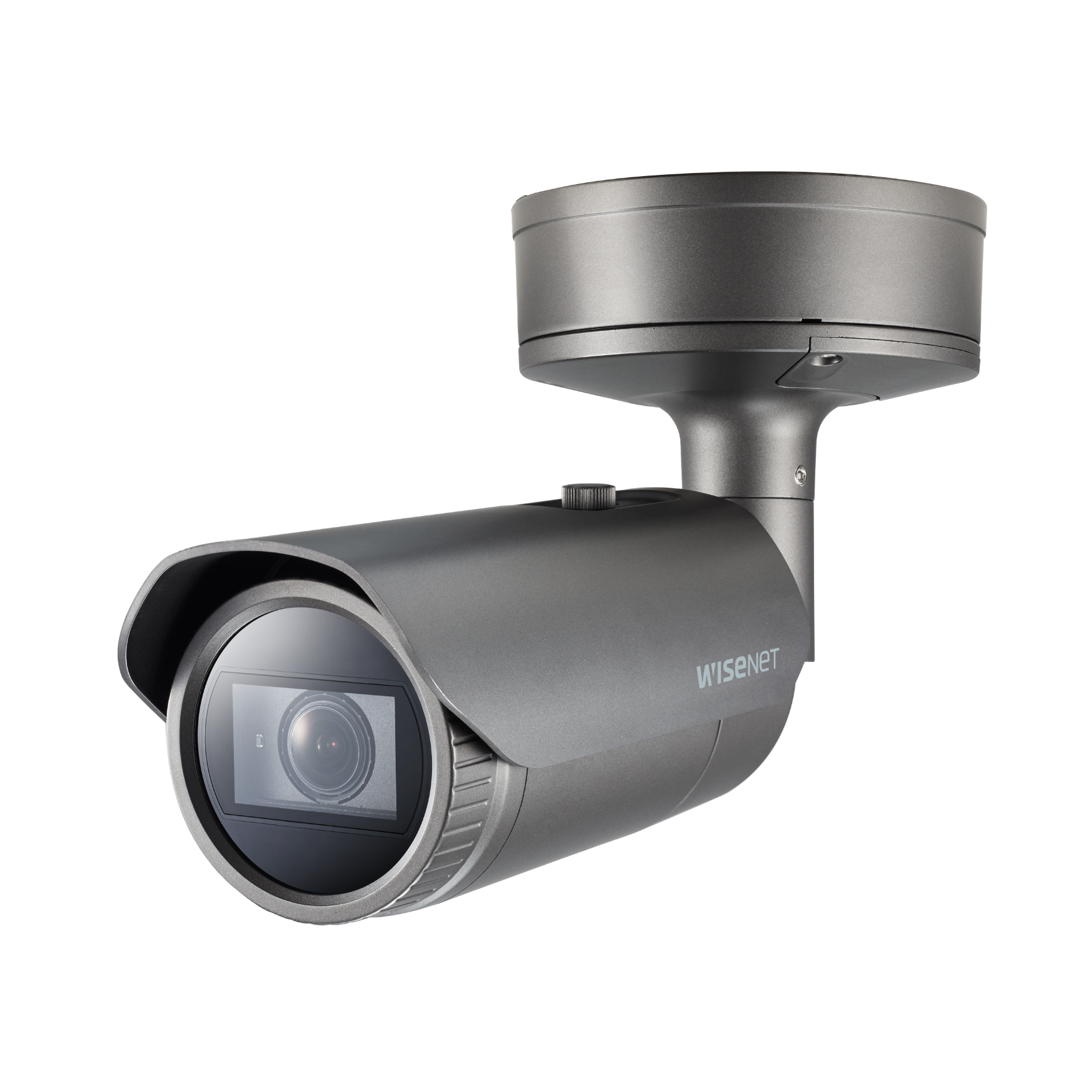

XNO-8080R: Hanwha Wisenet 5MP Outdoor Bullet Camera, H.265, 30fps, 120dB WDR, 50m IR, 3.7-9.4mm
Hanwha Wisenet 5MP Outdoor Bullet Camera
Product Overview
With cutting-edge WDR technology, the Hanwha HAN-XNO-8080R conquers limitations found in conventional WDR cameras while producing clear and vivid images through 150dB WDR. Part of the Wisenet X series, this camera can achieve optimal performance in low-light conditions by capturing and producing flawless images regardless of the environment or time of day. Using WiseStream II, the HAN-XNO-8080R reduces data by up to 99% when combined with H.265 compression, through this, system costs are greatly reduced without compromising image quality. Installation is convenient as you can connect cameras and mobile devices through USB and Wi-Fi, so no additional devices are required, saving time and money. The HAN-XNO-8080R is jam-packed with other features such as loitering detection, queue management, sound classification, lens distortion correction, fog detection and PTZ handover, making this camera a holistic solution for a variety of security environments.
FEATURES
FEATURES
- Max. 5MP (2560 x 1920) resolution
- Max. 30fps at all resolutions (H.265 / H.264)
- H.265, H.264, MJPEG codec supported, multiple streaming
- Day & night (ICR), WDR (120dB), defog
- Tampering, loitering, directional detection, fog detection, audio detection
- Digital auto tracking, sound classification
- Motion detection, handover
- SD / SDHC / SDXC memory slot (Max. 512GB)
- Hallway view, WiseStream II support
- IR viewable length 50m
- IP67/IP66, NEMA 4X, IK10
- PoE/24V AC, 12V DC, bi-directional audio support
Product Specifications
| Video | |
| Imaging Device | 1/1.8" 6MP CMOS |
| Resolution | 2560x1920, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate H.265/H.264 : | Max. 30fps/25fps(60Hz/50Hz) |
| MJPEG: | Max. 30fps/25fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.07Lux(F1.3, 1/30sec, 30IRE) BW: 0.007Lux(F1.3, 1/30sec, 30IRE), 0Lux(IR LED on) |
| Video Out | CVBS: 1.0 Vp-p /75Ω composite, 720x480(N), 720x576(P), for installation |
| USB: | Micro USB Type B, 1280x720, for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 3.7~9.4mm(2.5x) motorized varifocal |
| Max. Aperture Ratio | F1.2 |
| Angular Field of View | H: 100.2°(Wide)~38.7°(Tele) <br>V: 72.2°(Wide)~29.0°(Tele) D: 132.0°(Wide)~48.6°(Tele) |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Simple focus |
| Lens Type | DC auto iris, P iris(IR corrected) |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, DWDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRâ…¤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | 8ea, 8point Polygonal zones |
| Privacy Masking | 32ea, Quadrangle zones - Color : Gray, Green, Red, Blue, Black, White - Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Analytics | Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | When alarm trigger occurred - File upload(image) : e-mail/FTP - Notification : e-mail - Recording : SD/SDHC/SDXC or NAS recording at event triggers - Alarm output - Handover |
| Audio In | Selectable(mic in/line in) |
| Supply voltage: | 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Max.output level: 1Vrms |
| IR Viewable Length | 50m(164.04ft) |
