Hanwha XNV-6120R
POSMarket SKU: Z14585
This model is available in 2 different configurations. Select a configuration below or contact our experts on 1300 737 998.

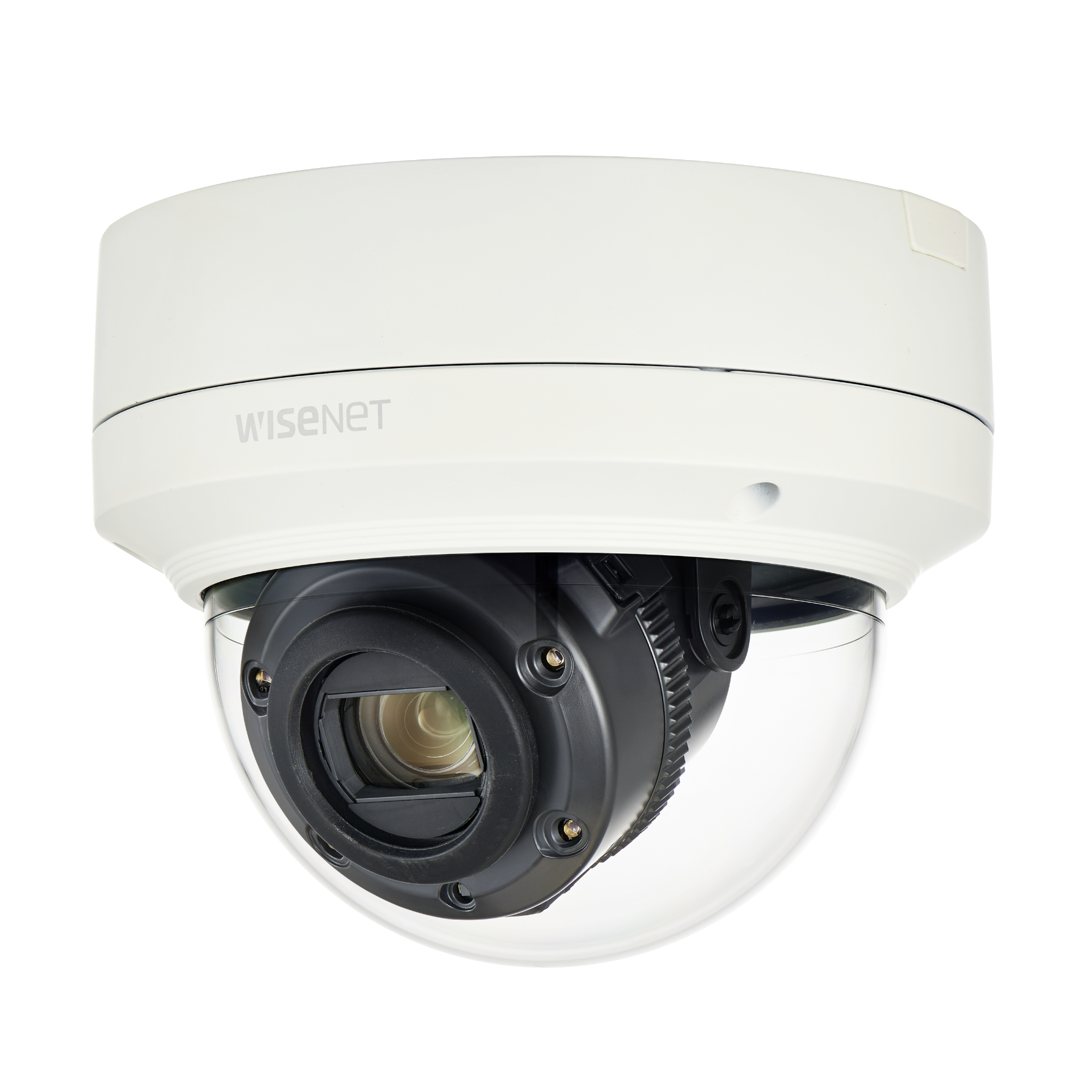

Hanwha Wisenet 2MP Outdoor Dome Camera, H.265, 60fps
Product Overview
FEATURES
- Max. 2MP (1920 x 1080) resolution
- 5.2 - 62.4mm (optical 12x) optical lens
- Max. 60fps at all resolutions (H.265 / H.264)
- H.265, H.264, MJPEG codec supported, multiple streaming
- Day & night (ICR), WDR (150dB), defog
- DIS with built-in gyro sensor
- Loitering, directional detection, fog detection, audio detection, sound classification, tampering
- Motion detection, handover
- SD / SDHC / SDXC memory slot, (max. 512GB)
- Hallway view, WiseStream II support
- Max. IR viewable length 70m
- IP66/IP67, IK10, NEMA 4X
- LDC support (lens distortion correction)
- PoE, 24V AC, 12V DC, bi-directional audio support
Product Specifications
| Video | |
| Imaging Device | 1/2.8" 2MP CMOS |
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate H.265/H.264: | Max. 60fps/50fps(60Hz/50Hz) |
| MJPEG: | Max. 30fps/25fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.03Lux(F1.6, 1/30sec) BW: 0Lux(IR LED On) |
| Video Out | CVBS: 1.0 Vp-p / 75Ωcomposite, 720x480(N), 720x576(P) for installation USB: Micro USB Type B, 1280x720 for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 5.2~62.4mm(12x) zoom |
| Max. Aperture Ratio | F1.6(Wide)~F3.0(Tele) |
| Angular Field of View | H: 54.58°(Wide)~5.30°(Tele) / V: 32.19°(Wide)~3.00°(Tele) / D: 61.4(Wide)~6.06(Tele) |
| Min. Object Distance | 2.1m(6.89ft) |
| Focus Control | OneshotAF |
| Lens Type | DC auto iris |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0°~354° / 0°~75° / 0°~355° |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 150dB |
| Digital Noise Reduction | SSNRâ…¤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, polygonal zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Analytics | Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output |
| Audio In | Selectable(mic in/line in) |
| Supply voltage: | 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Max.output level: 1Vrms |
| IR Viewable Length | 70m(229.66ft) |
