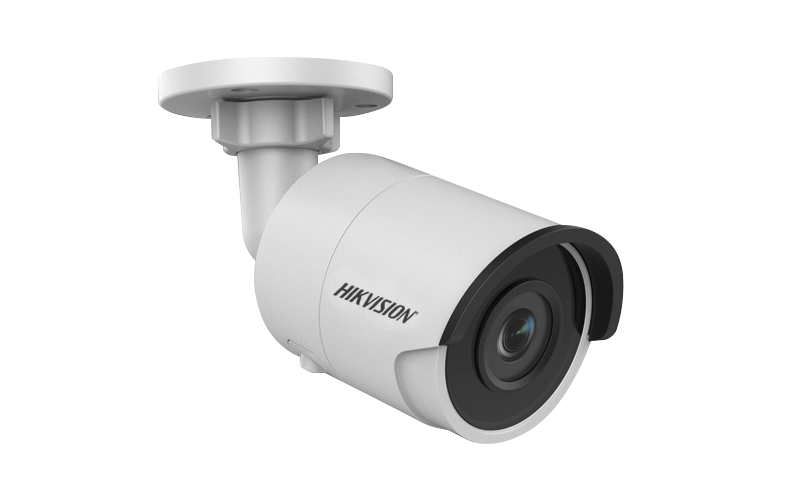

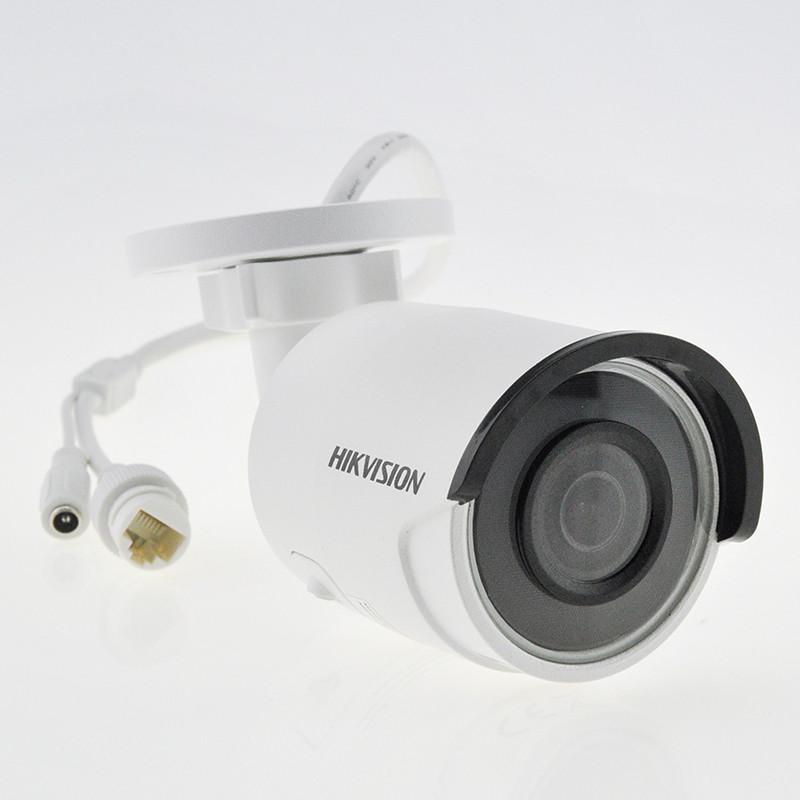

Hikvision DS-2CD2085FWD-I
POSMarket SKU: Z14130
This model is available in 2 different configurations. Select a configuration below or contact our experts on 1300 737 998.
8MP Outdoor Mini Bullet Camera, H.265+, 30m.
Product Overview
Features
- 1/2.5" progressive scan CMOS
- 8MP resolution (3840 x 2160) @ 20fps
- 2.8mm lens
- H.265, H.265+, H.264+, H.264
- Third stream
- 120dB wide dynamic range (WDR)
- Backlight compensation, 3D digital noise reduction
- Up to 30m infrared
- IP67
- Line crossing, intrusion, object abandoned, object removed and face detection
- Supports on-board storage, up to 128GB
- 802.3af PoE or 12VDC
Product Specifications
| CAMERA | |
| Image Sensor | 1/2.5" Progressive Scan CMOS |
| Min. Illumination Color: | 0.01 lux @(F1.2, AGC ON), 0 lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter Support | |
| LENS | |
| 2.8 mm | horizontal field of view: 102° |
| 4 mm | horizontal field of view: 79° |
| 6 mm | horizontal field of view: 50° |
| 8 mm | horizontal field of view: 40° |
| 12 mm | horizontal field of view: 23° |
| Lens Mount | M12 |
| Iris | F2.0 |
| Day &Night | IR cut filter |
| DNR | 3D DNR |
| Wide Dynamic Range | 120dB |
| 3-Axis Adjustment (bracket) | Pan: 0°to 360°, tilt: 0°to 90°, rotate: 0°to 360° |
| COMPRESSION STANDARD | |
| Video Compression | |
| Main stream: | H.265/H.264 |
| Sub stream: | H.265/H.264/MJPEG |
| Third stream: | H.265/H.264 |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Support |
| H.265 Type | Main Profile |
| H.265+ | Support |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| IMAGE | |
| Max. Resolution | 3840 x 2160 |
| Main Stream | |
| 50Hz: | 20 fps (3840 × 2160), 25 fps (2560 × 1920, 2560 × 1440, 1920 × 1080, 1280 × 720) |
| 60Hz: | 20 fps (3840 × 2160), 30 fps (2560 × 1920, 2560 × 1440, 1920 × 1080, 1280 × 720) |
| Sub Stream | |
| 50Hz: | 25fps (640 × 360, 352 × 288) |
| 60Hz: | 30fps (640 × 360, 352 × 240) |
| Third Stream | |
| 50Hz: | 25fps (1280 ×720, 640 × 360, 352 × 288) |
| 60Hz: | 30fps (1280 ×720, 640 × 360, 352 × 240) |
| Image Enhancement | BLC/3D DNR |
| Image Settings | Support rotate mode. Brightness, contrast, saturation, and sharpness are adjustable via web browser and client software |
| ROI (Region of Interest) | Support 1 fixed region for mainstream and sub stream separately |
| Day/Night | Switch Auto/Scheduled |
| GENERAL | |
| Operating Conditions | -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC +/- 25%, 7W PoE(802.3af, class 3), 7.5W |
| IR Range | Up to 30 m |
| Protection Level | IP67 |
| DIMENSION | |
| Camera: | Φ70 × 155.03 mm (Φ2.76″ × 6.1″) |
| Package: | 216 × 121 × 118 mm (8.5″ × 4.76″ × 4.65″) |
| Weight Camera: | 410 g (0.9 lb.) |
